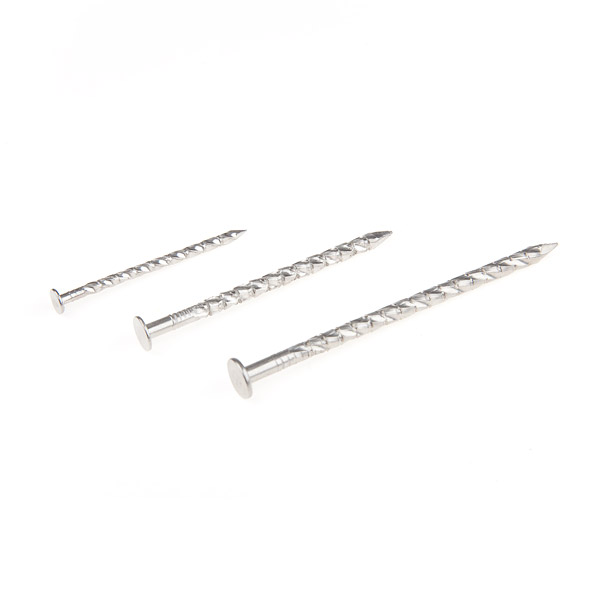

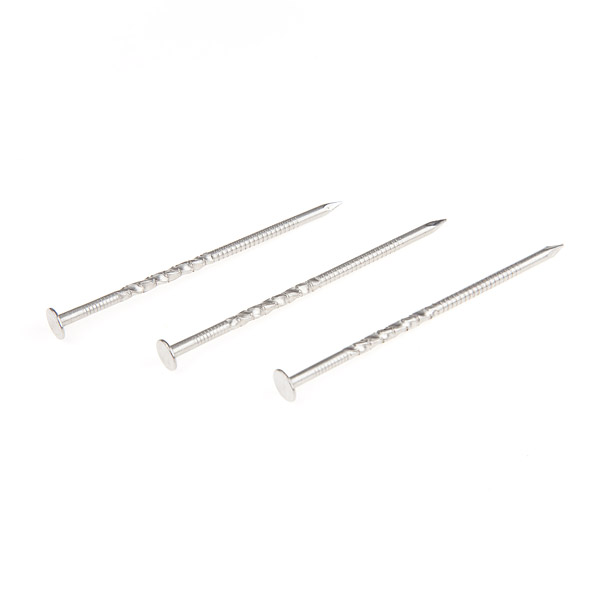

Special Shank Nails
Description

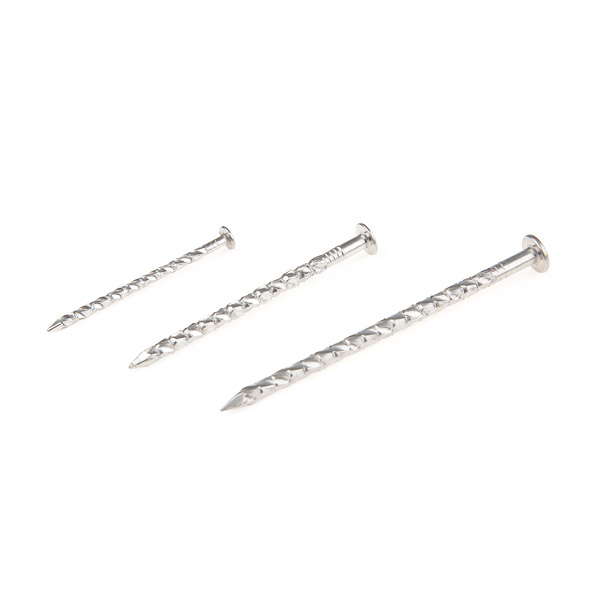

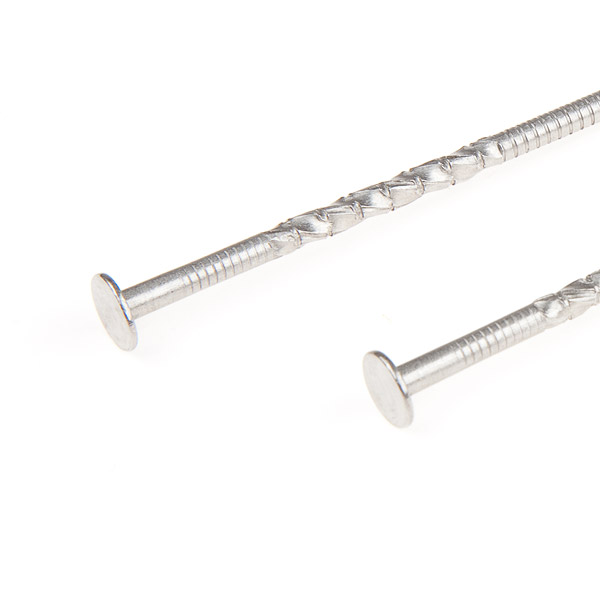

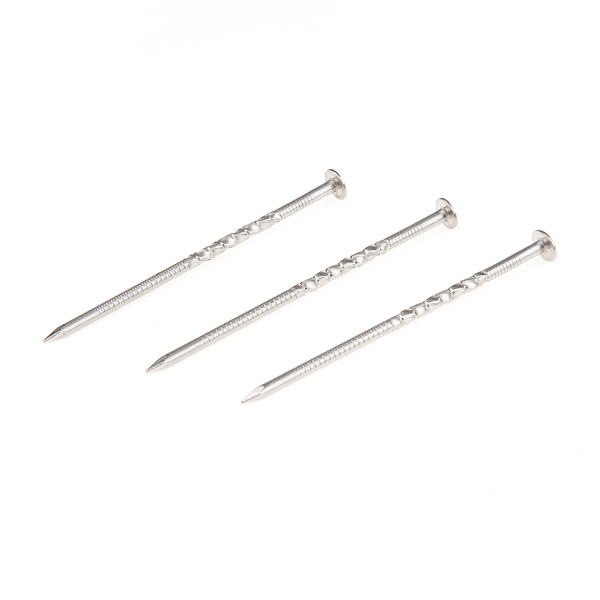

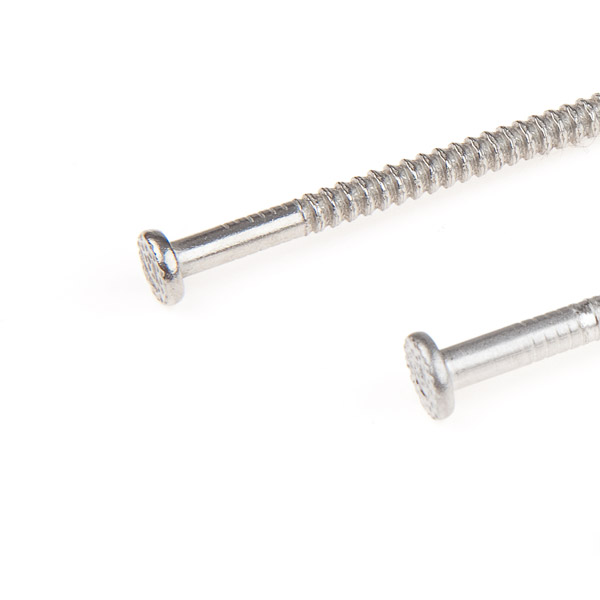

There are many types in stainless steel loose nails range. According to the different shanks, it can be divided into smooth shank nail, hollow shank nail, ring shank nail, twist shank nail and other special shank nail. According to the different heads, it can be divided into flat head nail, lost head nail, decking nail, rose head nail, crown head nail, oval head nail, right angle head nail and other special head nail. Various heads and shanks can be freely combined and matched.
Stainless steel loose nails have a variety of wide applications: basic construction, inside decoration, roof engineering, fencing, brackets, floors, furniture, pallets, etc. due to the flexible and optional combination of head and shank, and the anti-corrosion and anti-rust characteristics of the stainless steel material itself.
Generally stainless steel material has A2 and A4, there are more stainless steel material grades to be selected in the following sheet.
Nail diameter and length can be customized according to customer's requirements, the scope is shown in the following table.
Stainless Steel Chemical Composition
| SUS | Chemical Composition (%) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≤ | Ni | Mo | Other | |
| 304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10 | ||
| 304HC | 0.08 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10 | Cu 2-3 | |
| 304L | 0.08 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10 | ||
| 316 | 0.08 | 1 | 2 | 0.035 | 0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 316L | 0.03 | 1 | 2 | 0.035 | 0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 201CU | 0.12 | 1 | 7.5-10.0 | 0.045 | 0.03 | 3.5-16.0 | 3.5-5.5 | 0.5 | N≤0.1 |
| D668/204CU | 0.12 | 1 | 11.0-15.0 | 0.045 | 0.03 | 12.5-14.0 | 1.6-2.5 | 0.6 | N≤0.1 |
Specification
| Wire OD (mm) | 1.6/1.7/1.9/2.0/2.15/2.5/2.75/2.8/3.0/3.05/3.4/3.75/4.0/4.2/4.5/5.0/5.3 |
| Length (mm) | 19/20/25/30/32/38/40/45/50/65/70/80/90/100/120/125 |
| Remark | Other sizes produce according to customer's request. |
